FOR .3125 AND .3750 BORES:

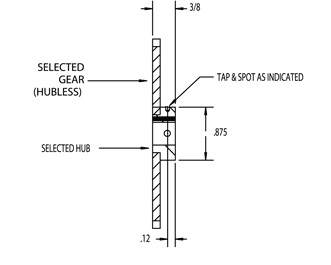

ASSEMBLED HUB SPECIFICATIONS:

BORE*

HUB #

TAP

SPOT

MATERIAL

.3125

HA312

#6-32

1/16

2024 ALUM

.3125

HS312

303 S/S

.3750

HA375





2024 ALUM

.3750

HS375





303 S/S







 *BORE TOLERANCE:  +.0003,.0002

FOR .1250, .1875, AND .2500 BORES:



ASSEMBLED HUB SPECIFICATIONS:

BORE*

HUB #

TAP

SPOT

MATERIAL

.1250

HA125

#2-56

3/64

2024 ALUM

.1250

HS125

303 S/S

.1875

HA187





2024 ALUM

.1875

HS187





303 S/S

.2500

HA250

#6-32

1/16

2024 ALUM

.2500

HS250

303 S/S











* BORE TOLERANCE: +.0003, -.0002

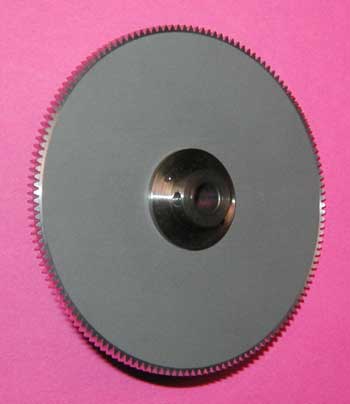

NOTE: BOTH STYLE HUBS PRESS FIT TO GEAR, STAKED, AND DOUBLE-PINNED.
