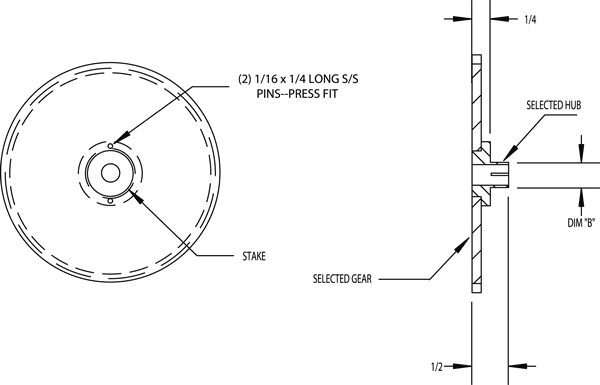

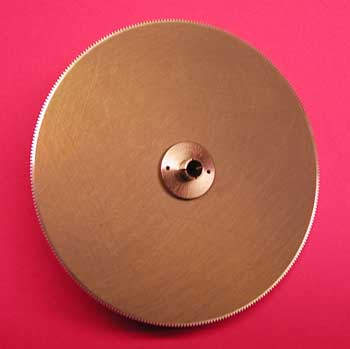

THESE ASSEMBLIES ARE MADE USING THE SELECTED HUBLESS GEAR, WITH A HUB PRESSED INTO THE BORE, STAKED, AND PINNED WITH TWO STAINLESS STEEL PINS.

ASSEMBLED HUB SPECIFICATIONS:

BORE*

HUB NUMBER

DIMENSION B

MATERIAL

.1250

SHA125

.188 - .003

2024 ALUM

.1250

SHS125

303 S/S

.1875

SHA187

.250 - .003

2024 ALUM

.1875

SHS187

303 S/S

.2500

SHA250

.312 - .003

2024 ALUM

.2500

SHS250

303 S/S









   *BORE TOLERANCE:  +.0003, -.0002
