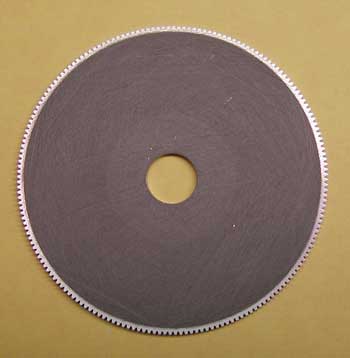

Spur Gears Hubless Type

STOCKED IN:

• 2024 ALUMINUM
• #303 S/S (UP TO 4”)

AVAILABLE IN STOCK FROM 32 D.P. TO 120 D.P. / 0.8 TO 0.2 MODULE, UP TO 6½ INCH O.D. (STAINLESS STEEL AVAILABLE UP TO 4 INCHES)

AVAILABLE ON REQUEST:

• AGMA QUALITY 12+
• 14½° OR OTHER PRESSURE ANGLE
• OTHER BORE SIZES
• OTHER MATERIALS

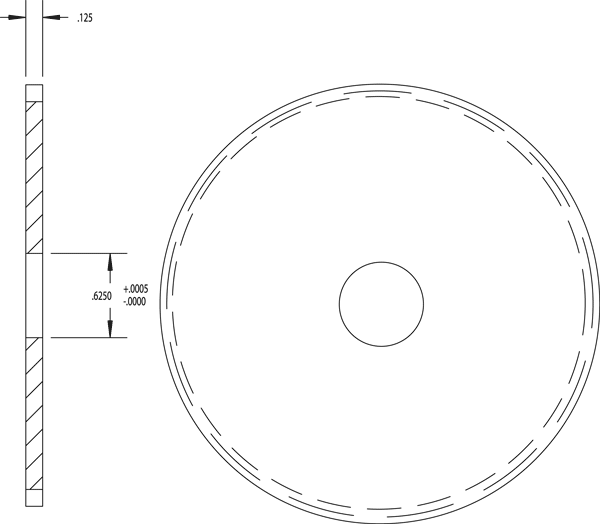

HUBLESS SPUR GEARS ARE AVAILABLE IN .6250” BORE SIZE ONLY; FOR OTHER BORE SIZES, SEE SPUR GEARS—PIN HUB ASSEMBLY AND SPUR GEARS—CLAMP HUB ASSEMBLY.
